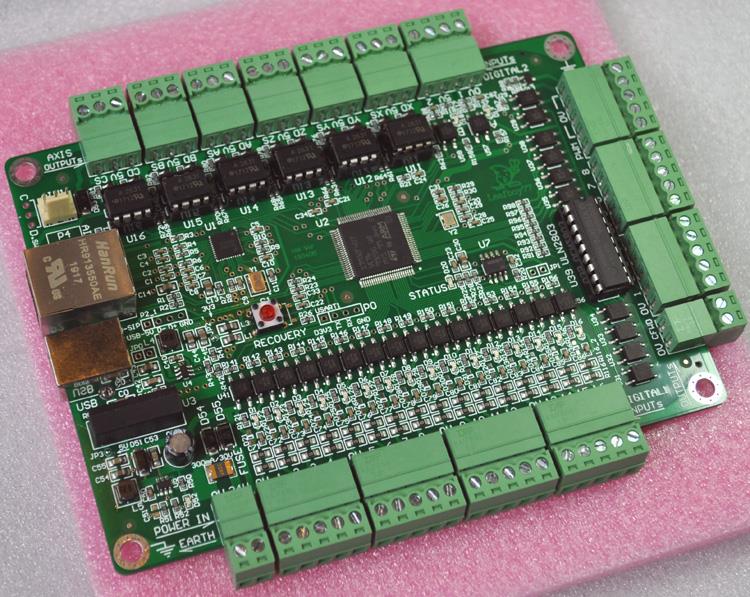

Features:

• Ethernet (using TCP/IP) or USB Full-speed connection.
• 100M Ethernet interface, built-in network transformer isolation, support long-distance wired connection. With the wireless router, the wireless connection between the PC (laptop) and the motion control board can be realized.
• Up to 6 axes, 500kHz pulsing engine, which is suitable for the servo or stepping motor. Any axis can be configured as a Step/Dir Spindle.
• Support slave axis (dual side motor drive: dual X/Y/Z), support home automatic leveling (dual side home switch).
• 2 real-time Manual Pulse Generation(MPG) input ports for 2 MPG at the same time. When the MACH3 MPG is set in the multi-step mode, it has the same real-time performance as the CNC machining center, smoothly. The control board has no delay and the mechanical system performance is fully utilized.
• 18 general-purpose input, with particular indicators, the input signal states can clearly shows.
• 7 general-purpose output, It can be configured as: spindle clockwise / CCW / Mist / Flood / VB script programming control.
• PWM output*1 channel, 0-10V analog voltage output*1 channel, 0-5V analog voltage output*1 channel. 3 outputs channels are used for spindle motor speed adjustment: PWM pulse width / 0-10V or 0-5V inverter.
• 2 analog input ports for adjusting the machining speed / jog speed / spindle speed.
• Status indicator LED can be useful to show the USB/Ethernet connection, and working stauts by flashing.
• 6 high-speed optocouplers(Dual Channel) with 10MHz, 27 general optocouplers for isolating all of the input/output signals, this high-cost design can be provided high performance and stable system.
• Fully supporting all Mach3 versions. Supporting Windows series, including Windows XP-Windows10(32bit/64bit).
• No need to install any USB drivers, it can be used after plugging in the computer.
• Easy firmware update.
• Provide a complete installation manual, illustrated, detailed description.
