3 Eksen Cnc Router Makinenizi Kolayca Kontrol Edebilirsiniz..
Step ve Servo Motorlarla Uyumludur.

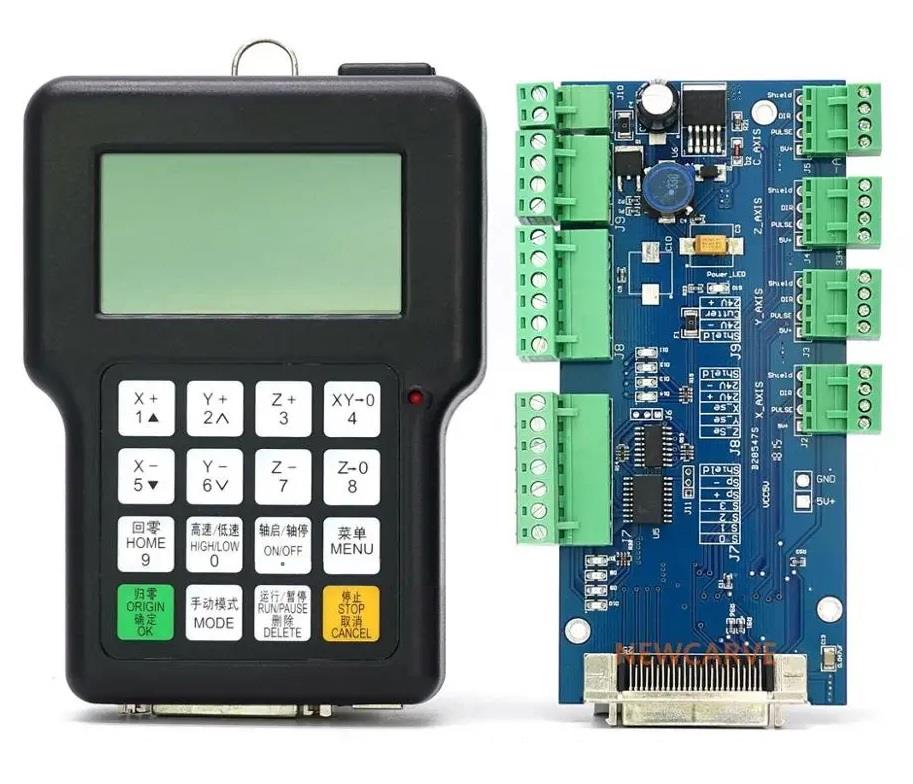

Takım içinde Dsp Panel, Kontrol Kartı, Kablo bulunmaktadır.
Cnc yi Kontrol etmek için tek başına yeterlidir. Bilgisayara gerek yoktur.
TEKNİK DÖKÜMAN
Contents
3 axis 0501 CNC DSP control system
Processor
128M DSP
File Memorizer
128M memorizer inside, it supports file with any size because of adopting mobile memorize technology
Display
LCD with 128 dot*64 dot
Communication Terminals
USB terminal and U Disk
File Format
G code , PLT files (optional)
Axes
3 axes
Help Function
Useful help information and guide
Languages
Chinese, English, Russia, France, Japanese(optional or customize)
Operating Interface
Friendly Buttons and Menu Drive
Drive System
Step Motors
Interpolation function
linear, curve
Cutter Adjusting function
Yes
Spindle Control Function
System Data Inspect Function
Processing Data Inspect Function
Processing Position Adjusting Function
Multi Working Coordinates
It has 9 working coordinates
Stop Point Reprocessing Function
Copy Processing Function
Data protection when power off
Working Temperature
0C to +70C
Humidity
<90 no dew no frost
Outer Voltage
5 V
Consumptions
2 W
Dimensions(mm)
156*110*38
